Procedure for Windows 10 to Access Universities via Y5ZONE

A. Configuration Procedure (to be done once only)

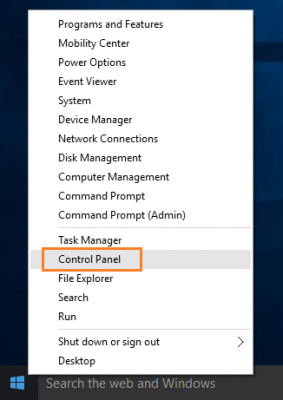

  1. Right click Windows Start button Window Start button and select Control Panel.
  2. yzone5_win10_01
  3. Click Network and Internet.
  4. yzone5_win10_02

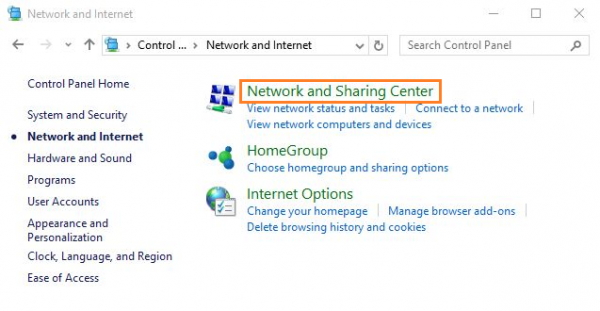

  5. Click Network and Sharing Center.

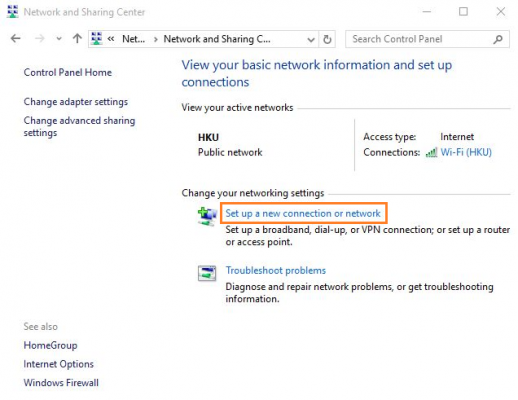

  6. Click Set up a new connection or network.
  7. yzone5_win10_04

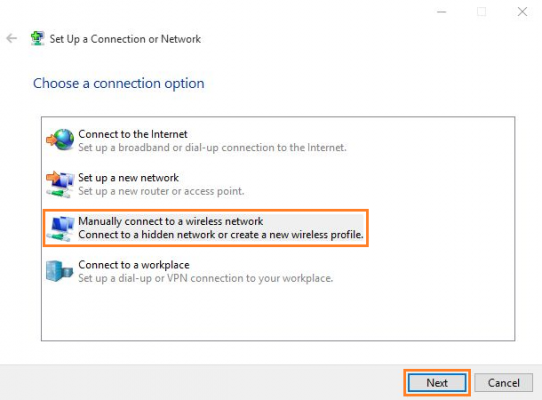

  8. Click Manually connect to a wireless network and choose Next.
  9. yzone5_win10_05

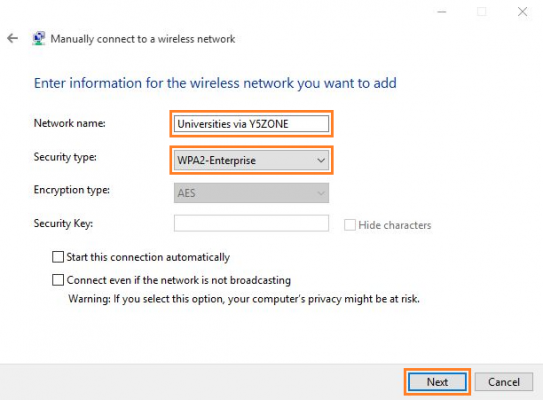

  10. Under Manually connect to a wireless network,
    • In Network name field: enter Universities via Y5ZONE;(Note: “Universities via Y5ZONE” is case-sensitive.)
    • In Security type field: select WPA2-Enterprise;(Note: Both WPA-Entreprise and WPA2-Entreprise are supported in HKU. WPA-Entreprise may be more suitable or compatible for users in other universities.)
    • Click Next.
    • yzone5_win10_06
  11. Click Change connection settings.
  12. yzone5_win10_07
  13. In the “Universities via Y5ZONE” Wireless Network properties window,
    • Under the Connection tab, un-check all boxes.
    • yzone5_win10_08
  14. Select Security tab.
    • Under Choose a network authentication method, select Microsoft: Protected EAP (PEAP).
    • Un-check Remember my credentials for this connection each time I’m logged on.
    • Click Advanced settings.
    • yzone5_win10_09

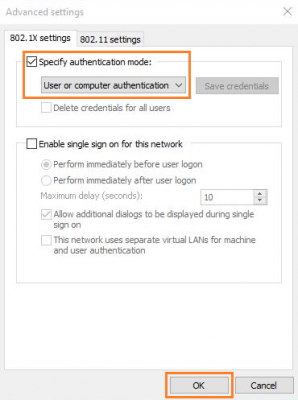

  15. In Advanced settings,
    • Check Specify authentication mode: and select User or computer authentication.
    • Click OK.
    • yzone5_win10_10

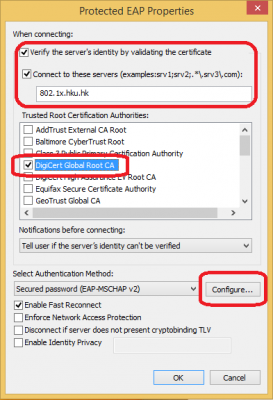

  16. In the Protected EAP Properties window,
    • Check Verify the server’s identity by validating server certificate
    • Check Connect to these servers and type 802.1x.hku.hk
    • Check DigiCert Global Root CA
    • Select Tell user if the server’s identity can’t be verified from Notifications before connecting drop down menu.
    • Select Secured password (EAP-MSCHAP V2) from Select Authentication Method drop down menu.
    • Click Configure…
    • yzone5_win10_11

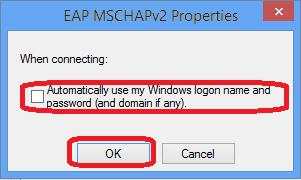

  17. Un-check Automaticlly use my Windows login name and password (and domain if any) and click OK.  Click Change connection settings.
  18. yzone5_win10_11
  19. Click OK twice to close the popup Windows, then click Close to finish.

B. Connection Procedure

  1. In Window 10,
    • Click Windows Start
    • yzone5_win10_13.
    • Click Settings.
    • Click Network and Internet.
    • Select WiFi on the left pane.
    • Select Universities via Y5ZONE and click Connect.
    • yzone5_win10_14
  2. In the “Sign in” window,
    • For staff, please enter your username in the format of UID@hku.hk. For students, please enter your username in the format of UID@connect.hku.hk.
    • Enter your HKU Portal PIN in the Password field.
    • Click OK to logon.
    • yzone5_win10_14

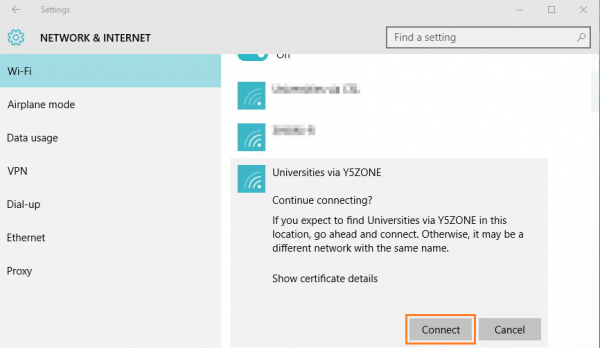

  3. For first time login, you may see the message below. Click Connect to continue.
  4. yzone5_win10_15

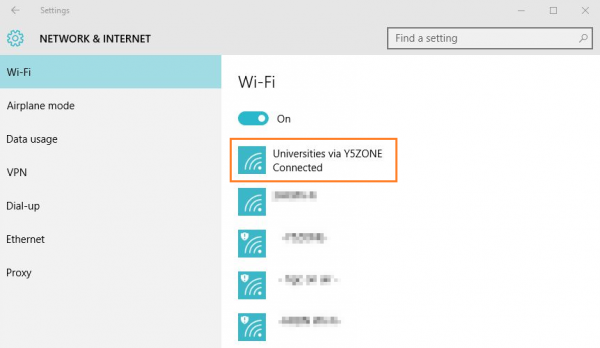

  5. You are currently connected to Universities via Y5ZONE.
  6. yzone5_win10_16

C. Security Note

For better password security protection, you are advised to change your HKU Portal UID if it has not been changed for six months.
